DFJ - Flexible Fire Jacket

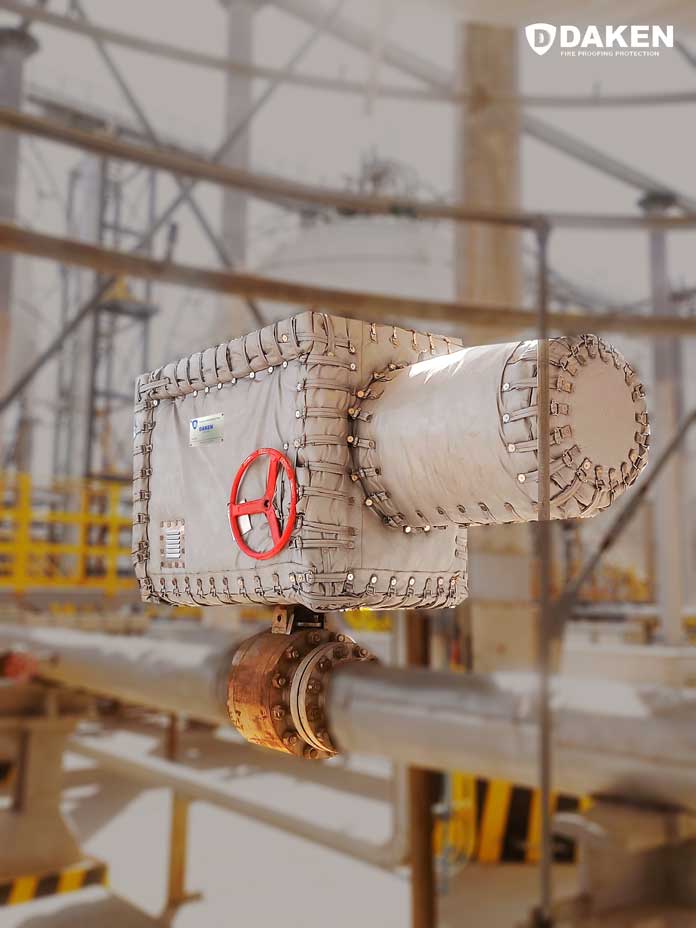

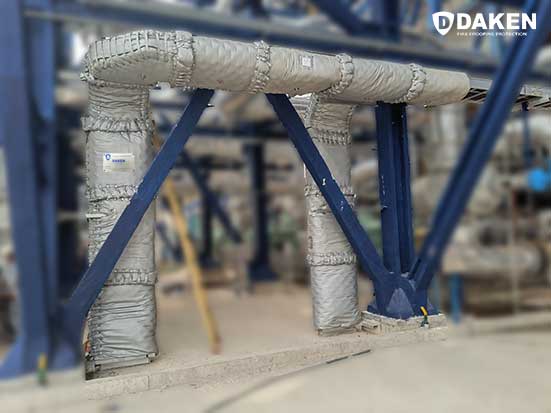

Daken’s flexible jacket Passive Fire Protection System is a high-performance solution composed of different layers of alkaline earth silicate (AES) fiber blanket. It has been developed as both an enclosure system for valves, actuators, pipelines, equipment and cable trays, and pressure vessels and as a tubular design for pipework and structural steelwork. The system is designed to meet the most demanding requirements to protect equipment against hydrocarbon pool fires and hydrocarbon jet fires. In all cases a bespoke design is considered, offering the optimum design to ensure a compact, easy to install, user friendly, and fully certified system is supplied.
Daken Fire Jacket (DFJ) has two types of products according to different fire scenarios: hydrocarbon pool fire protection and hydrocarbon jet fire protection. Both product types have achieved Lloyd's Register Type Approval certification considering UL1709 test standard for hydrocarbon pool fires and ISO-22899-1 test standard for hydrocarbon jet fires.
Features:
Our standard product features are as follows -
- Professional certified design & manufacture procedure as per test-work.
- The lightest, thinnest, specialized design, and certified fire jacket in the industry.
- Lloyd’s tested and approved Access Doors, secured by quick release toggle fastener, providing access to the protected equipment for visual inspection, operation of controls, or maintenance requirements.
- Lloyd’s tested and approved Ventilation Grill, Drainage and Cable or Pipe Penetration features.
- Lloyd’s tested and approved belt buckle securement, allowing easy installation and removable.
Each bespoke design is specifically engineered to fit closely around the protected item using 3D modelling software to ensure a good fit-up and allowing for clash detection to avoid any issues during installation. Additional project documentation can also be accommodated including project specific Design Approval Documents (DAD’s) that are typically issued by Lloyds Register or other 3rd party certifying authorities.
